DC-DC Converter


CX Series (Product Discontinued)

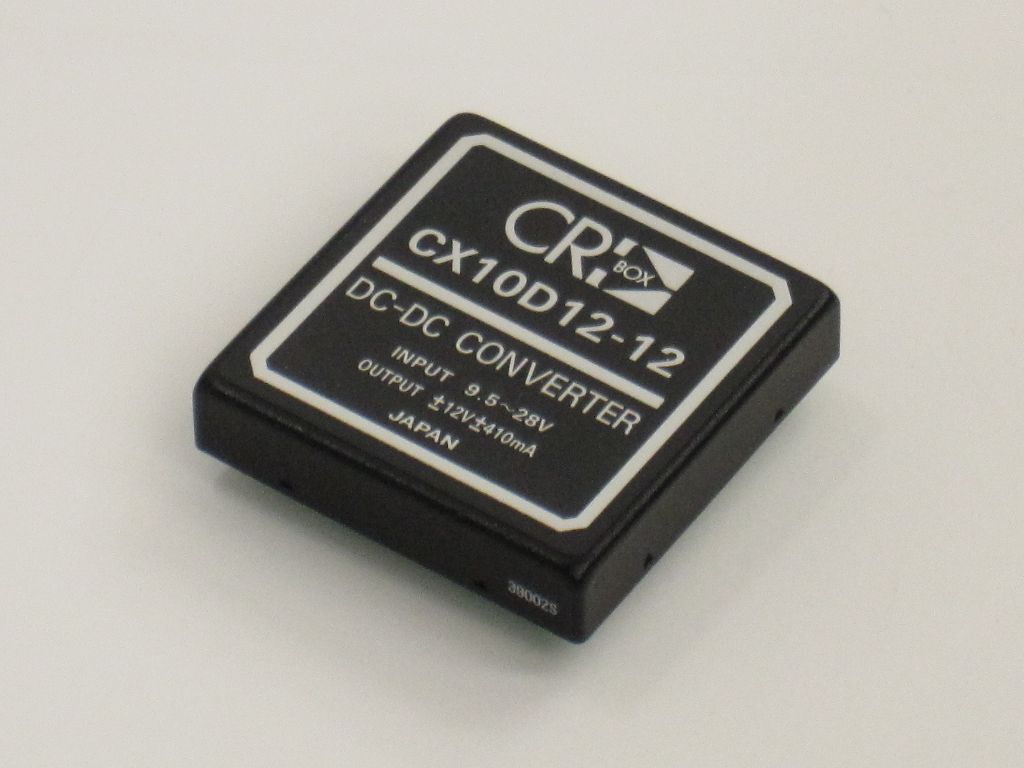

CX3D CX6D CX10D

CX3DCX6DCX10D

Characteristics

  • Highly reliable (No TC on input filter, no electrolyte condenser used), long life
  • Start at -40 degree Celsius
  • Fits within a metal case having six face shield structure
3W Output
CX3 Series
pdfPDF		 Output Voltage
+5V		 Output Voltage
+12V		 Output Voltage
+15V		 Output Voltage
± 12V		 Output Voltage
± 15V
Input Voltage 5V CX3S05-05 CX3S12-05 CX3S15-05 CX3D12-05 CX3D15-05
Input Voltage 12V CX3S05-12 CX3S12-12 CX3S15-12 CX3D12-12 CX3D15-12
Input Voltage 24V CX3S05-24 CX3S12-24 CX3S15-24 CX3D12-24 CX3D15-24
6W Output
CX6 Series
pdfPDF		 Output Voltage
+5V		 Output Voltage
+12V		 Output Voltage
+15V		 Output Voltage
± 12V		 Output Voltage
± 15V
Input Voltage 5V CX6S05-05 CX6S12-05 CX6S15-05 CX6D12-05 CX6D15-05
Input Voltage 12V CX6S05-12 CX6S12-12 CX6S15-12 CX6D12-12 CX6D15-12
Input Voltage 24V CX6S05-24 CX6S12-24 CX6S15-24 CX6D12-24 CX6D15-24
10W Output
CX10 Series
pdfPDF		 Output Voltage
+5V		 Output Voltage
+12V		 Output Voltage
+15V		 Output Voltage
± 12V		 Output Voltage
± 15V
Input Voltage 5V CX10S05-05 CX10S12-05 CX10S15-05 CX10D12-05 CX10D15-05
Input Voltage 12V CX10S05-12 CX10S12-12 CX10S15-12 CX10D12-12 CX10D15-12
Input Voltage 24V CX10S05-24 CX10S12-24 CX10S15-24 CX10D12-24 CX10D15-24


CXV Series (Product Discontinued)

CXV1D

CXV1D

Characteristics

  • Slim SIP type
  • Able to start at -40 degree Celsius
  • High efficiency 76% type
  • Lightweight 10g
  • Isolated type, unstabilized
Product Input
Voltage
(V)		 Output
Voltage
(V)		 Output
Current
(mA)		 Conversion
Efficiency
(%)		 Ripple
(mVpp)		 Isolation
Voltage AC
(V)
CXV1S05-05
pdfPDF(JP)		 4.75~5.25 5 200 75 50 3000
CXV1D15-05F
pdfPDF(JP)		 4.75~5.25 ± 15 ± 30 76 40 500


CL Series (Product Discontinued)

CL2D

CL2D

Characteristics

  • Low noise
Product
pdfPDF		 Input Voltage
(V)		 Output Voltage
(V)		 Output Current
(mA)		 Conversion Efficiency
(%)		 Ripple
(mVpp)
CL2S05-05 4.75~6 5 400 70 8
CL2D12-05 4.75~6 ± 12 ± 80 70 8
CL2S15-05 4.75~6 15 130 70 8
CL2D15-05 4.75~6 ± 15 ± 65 70 8


CR3 Series (Product Discontinued)

CR3D

CR3D

Characteristics

  • Low noise
  • Auto-ecovery over-current protection circuit equipped
CR3 Series
pdfPDF		 Output Voltage
+5V		 Output Voltage
+12V		 Output Voltage
+15V		 Output Voltage
± 5V		 Output Voltage
± 12V		 Output Voltage
± 15V
Input Voltage 5V CR3S05-05 CR3S12-05 CR3S15-05 CR3D05-05 CR3D12-05 CR3D15-05
Input Voltage 12V CR3S05-12 CR3S12-12 CR3S15-12 CR3D05-12 CR3D12-12 CR3D15-12
Input Voltage 24V CR3S05-24 CR3S12-24 CR3S15-24 CR3D05-24 CR3D12-24 CR3D15-24


CR3T Series (Product Discontinued)

CR3T

CR3T

Characteristics

  • Ultra thin type
  • Five face shield
  • Automatic recovery over-current protection circuit equipped
Product Input Voltage (V) Output Voltage 1(V) Output Voltage 2,3(V) Output Current 1(mA) Output Current 2,3(mA) Ripple (mVpp)
CR3T15-05
pdfPDF(JP)		 4.75~5.25 5 ± 15 300 ± 75 10


CE Series (Product Discontinued)

CE3D

CE3D

Characteristics

  • Thin type
  • Ultra low noise typ 3mV
  • Five face shield
  • Automatic recovery over-current protection circuit equipped
Product Input Voltage (V) Output Voltage (V) Output Current (mA) Conversion Efficiency (%) Ripple (mVpp) Isolation Voltage AC(V)
CE3D15-05
pdfPDF(JP)		 4.75~5.25 ± 15 ± 100 62 3 500


CU Series (Product Discontinued)

CU3D

CU3D

Characteristics

  • Ultra low noise typ 5mV
  • Equipped w/ an automatic recovery over-current protection circuit
Product Input Voltage (V) Output Voltage (V) Output Current (mA) Conversion Efficiency (%) Ripple (mVpp) Isolation Voltage AC(V)
CU3D15-05
pdfPDF(JP)		 4.75~5.25 ± 15 ± 100 62 5 500
